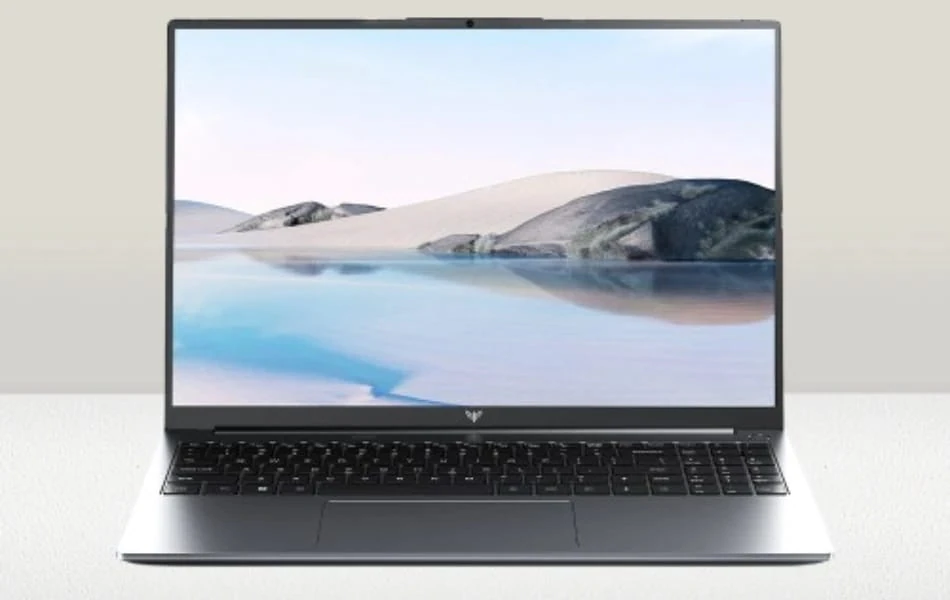

The ACEMAGIC RX16 is a reliable, performance-focused, and affordable laptop designed for professionals, developers, and power users. Powered by a sixth-generation AMD Ryzen 7 processor and integrated Radeon graphics, it offers a balanced balance of processing power, efficiency, and upgradeability.
Its 16-inch display, the latest memory, and fourth-generation solid-state drive (SSD) support make it ideal for multitasking, content processing, and light graphics workloads.
In this article, we’ll evaluate its real-world performance, thermal performance, and benchmark scores to see how it meets current productivity needs.
ACEMAGIC Release Date: May 2025Model: RX16Laptop Type: Performance / ProductivitySeries: ACEMAGIC RXAvailable on: Key Features Model Name ACEMAGIC RX16 Processor AMD Ryzen 7 6800H Frequency/Core Up to 4.7 GHz (8C/16T) RAM 16GB DDR5 Storage 512GB NVMe SSD Graphics Card AMD Radeon 680M Display 16-inch FHD (1920×1200) , IPS, 60 Hz Operating System (OS) Windows 11 Pro Weight 1.8 kg (~4 lb) Battery 51 Wh (4400 mAh, ~7 hours regular usage) Microsoft Office
Full Specifications Processor (CPU) Processor Model Name AMD Ryzen 7 6800H Processor Speed 3.3 GHz Base, Up to 4.7 GHz Boost Cores 8 Threads 16 L3 cache 8 MB Fabrication process 7 nm
Video Card Graphics Processor AMD Radeon 680M Graphics Memory Capacity Shared (Up to 6GB) Graphic Type Integrated Memory Type LPDDR5X GPU Frequency Base Clock: 2000 MHz Fabrication process 6 nm
RAM Memory Capacity 16GB Channels 2×8 GB Memory Type DDR5 Frequency 4800 MHz Memory Slots 2 Upgradable Yes Maximum RAM size 64 GB
Storage Storage Capacity 512GB Storage Type PCI-E Gen 4.0 Drive Interface NVMe SSD (M2) Channels 1×512 GB Total Slots 2 Upgradable Yes, up to 4TB
Display Screen Size 16 inches Screen Resolution 1920 x 1200 pixels Refresh Rate 60 Hz Display Screen Type IPS Display Screen Technology LCD HDR support Yes, HDR10 PPI 243 ppi Pantone Validated No Response Time 1 ms Touch Input No Coating Glossy Maximum brightness 300 nits Contrast 1000:1 sRGB color gamut 100% Sync technology No
Battery Capacity 11.55V/4400mAh 51Wh Full charge time Around 1.5 to 2 hours Battery type Lithium Ion Removable No Fast charging Yes USB power delivery Yes Charging connector location Left Charging power 65W Output 20V/5A，TYPE C connector Charger weight 210 grams
Frame The weight 1.8 kg Dimensions 14.06 x 9.75 x 0.78 inches Area 137.2 in² (approximate surface area) Screen-to-body ratio 85% Side frames Thin (around 5 mm on sides) Material Plastic Colors Space Gray Transformer No Screen opening angle Up to 180°
Thermal Management Cooling type Active air cooling with dual-fan system Liquid metal Yes Evaporation chamber No Number of coolers 2 fans Noise level 35–42 dB
Sound Audio Chip Realtek ALC series Audio Format HD Audio Speaker Power 2.0W x 2 (Stereo) Dolby Atmos No Max. volume 83.1 dB microphones 2 Noise-canceling technology Yes Audio Recording Yes
Communications Wi-Fi version v6 Bluetooth v5.4 The fingerprint scanner No Drive No Webcam Above the display Webcam Resolution 1MP（1280×720)
IO and Ports USB-A 2 × USB 3.2 Gen 1 USB Type-C 2 × USB Thunderbolt No HDMI 1 × HDMI 2.0 Display port Supported via USB-C VGA No Audio port (3.5mm) Yes Ethernet (RJ45) Yes SD card reader Yes Separate charging port No
Keyboard and Touchpad Keyboard type Island-style Numeric block Yes Backlight Yes Key travel 1.4 nm Keyboard Layout QWERTY The size Full-size keys (16 x 16 mm approx.) Surface Matte, smooth-finish plastic Windows Precision Yes
Benchmark Also Read: Best Laptops with Backlit Keyboards

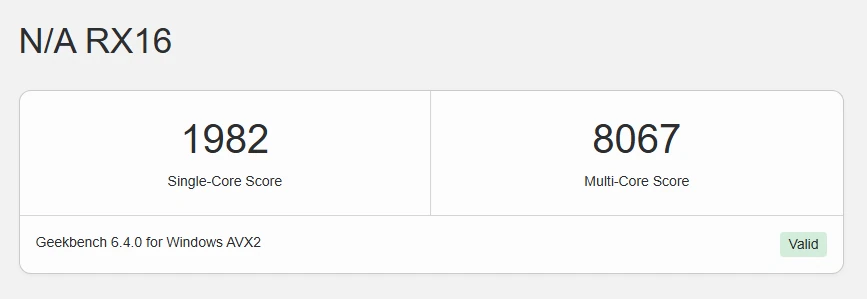

CPU Performance Test ACEMAGIC RX16 Geekbench 15 (Single-Core) 1982 Geekbench 15 (Multi-Core) 8067 Cinebench R23 (Single-Core) 1,700 Cinebench R23 (Multi-Core) 13,300
GPU Performance Test ACEMAGIC RX16 3DMark Time Spy 3,900 – 4,000 3DMark Fire Strike / Extreme 4,200 – 6,500 3DMark Night Raid 22,600 – 29,800
Storage Performance Test ACEMAGIC RX16 CrystalDiskMark (Seq. Read) 5,200 – 6,700 MB/s CrystalDiskMark (Seq. Write) 4,500 – 5,000 MB/s
Real-World Tasks Test ACEMAGIC RX16 Lightroom Classic (500 RAW export) 14 – 15 min HandBrake 4K → 1080p Transcode 250 – 270 sec Xcode / Dev Compile (Large Project) 120 sec
AI Performance Test ACEMAGIC RX16 AI via GPU 1.1–1.2 TFLOPs ML Image Recognition 10–15% faster than 6600H
Thermals Test ACEMAGIC RX16 Avg Load Temp 75 – 76 °C Peak Temp (Stress Test) 90 – 95 °C
Battery Life Test ACEMAGIC RX16 Productivity / Web Browsing 5 – 7 hours Video Playback (1080p, HDR Off) 6 – 7 hours Gaming (Metal Native, High Load) 2 hours Office / Light Tasks 3.5 – 4 hours
Source: Geekbench
CPU Performance
GPU Performance
Storage Performance
Gaming Performance
Thermal Performance
Battery Life
