MSI IPC is expanding its industrial lineup with the new MS-C936 fanless edge box PC and MS-CF27 industrial single-board computer built for AIoT, automation, digital signage, transportation, retail analytics, and smart factory deployments.
The MS-C936 is the larger and more powerful platform of the two. MSI equips the edge box PC with Intel Raptor Lake-P Refresh U-series processors, including Intel Core 5 120U configurations reaching up to 5.0 GHz, based on the same platform generation covered in Intel’s Arrow Lake Refresh Core Ultra 200 Plus roadmap. The platform focuses on compact deployment, continuous uptime, and industrial reliability instead of desktop-class peak power.

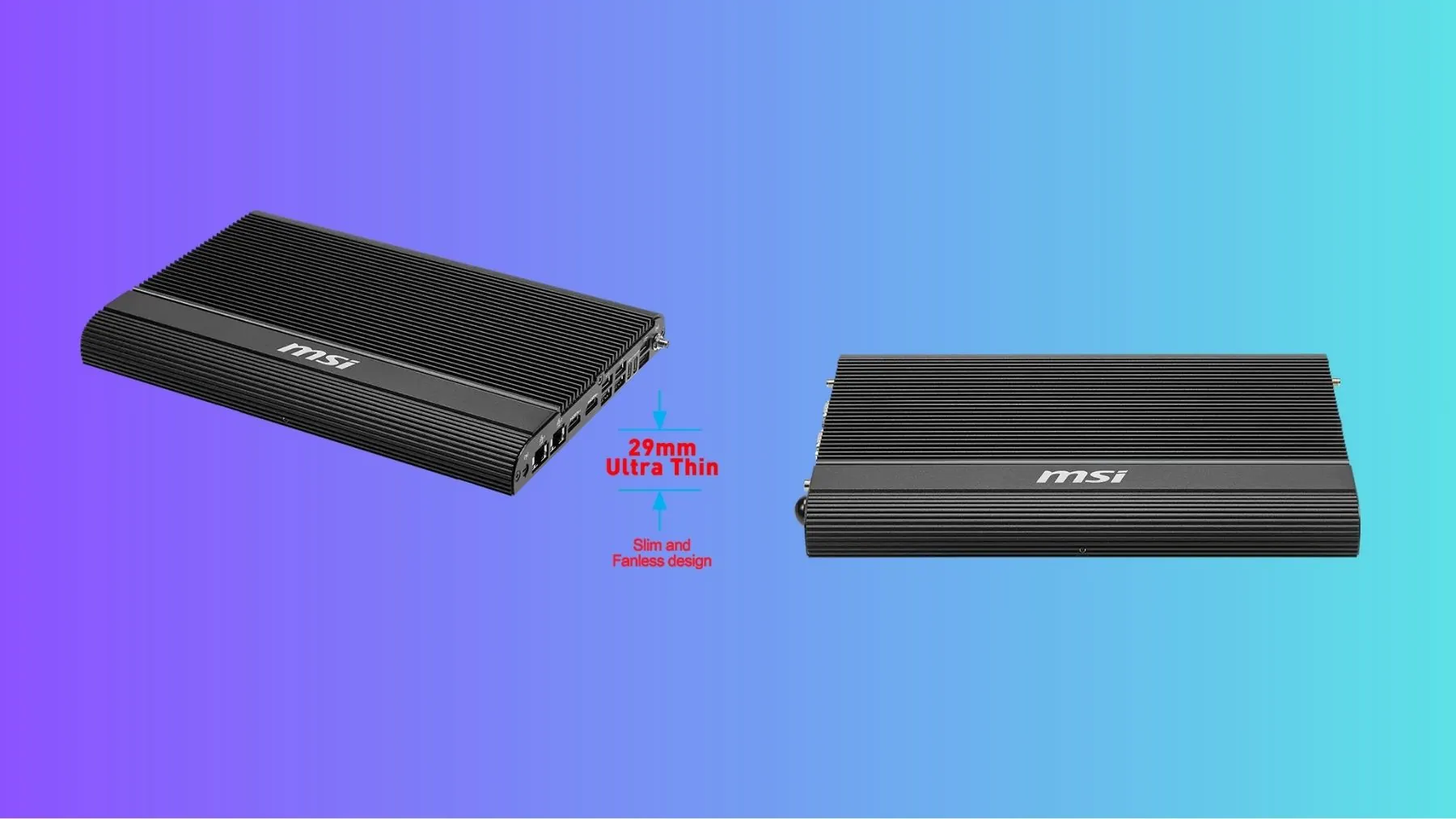

One of the biggest highlights is the chassis itself. The MS-C936 measures only 196 × 285 × 29 mm while remaining completely fanless. MSI also certifies the chassis for IEC 60068-2 shock and vibration resistance, making it suitable for transportation, factory, kiosk, and industrial environments where moving parts and dust buildup can become long-term maintenance issues.
Memory support reaches up to 96GB DDR5-5200 through dual SO-DIMM slots, exceeding capacities used in many compact systems including the Minisforum M1 Lite. MSI also adds a bottom-access layout that gives direct access to memory slots, M.2 storage, and the 2.5-inch drive bay for easier servicing and upgrades.

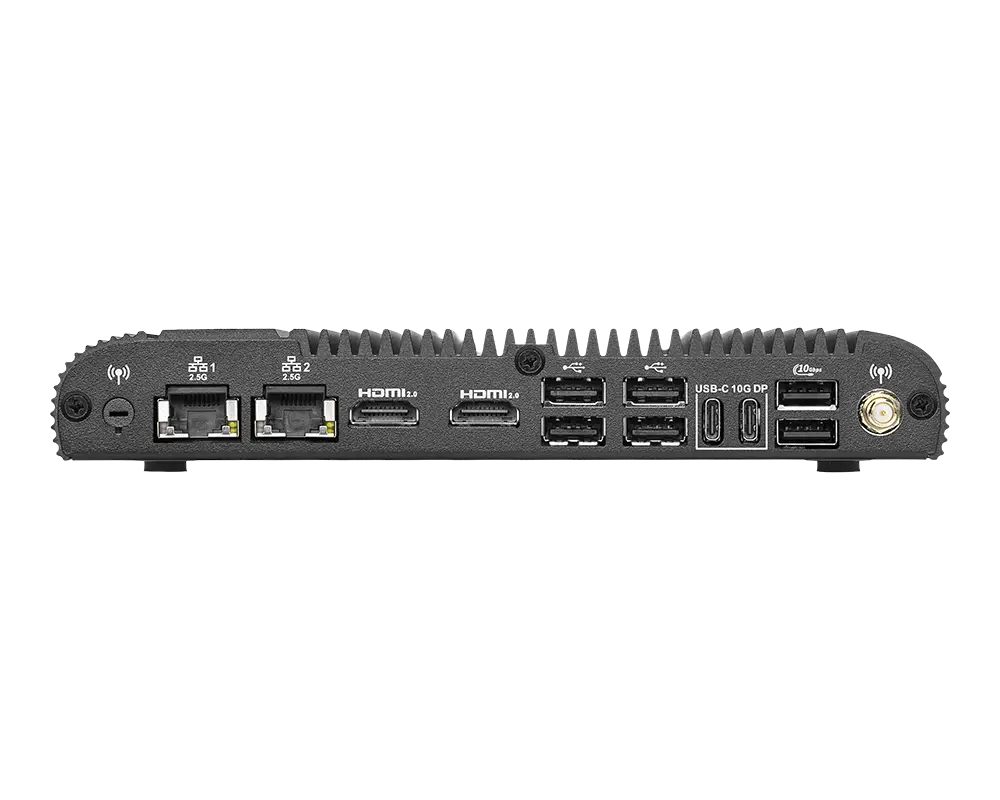

Display connectivity is another major focus, especially for deployments requiring multiple high-resolution panels such as the Lenovo Yoga Mini i Gen 11. The MS-C936 supports four independent displays through dual HDMI 2.0 ports and two DisplayPort outputs routed through USB-C connections. MSI lists support up to 4096 × 2304 at 60Hz over HDMI and up to 7680 × 4320 at 60Hz through DisplayPort, allowing multi-display deployment for retail signage, industrial monitoring, command centers, and edge analytics environments.
Networking and expansion focus heavily on industrial flexibility. The edge PC includes dual Intel I226-LM 2.5GbE controllers alongside three M.2 slots. MSI includes one M-key slot for NVMe or SATA storage, one B-key slot with Nano SIM support for cellular connectivity, and one E-key slot for wireless modules. SATA RAID 0/1 support is also included for data redundancy and storage management.

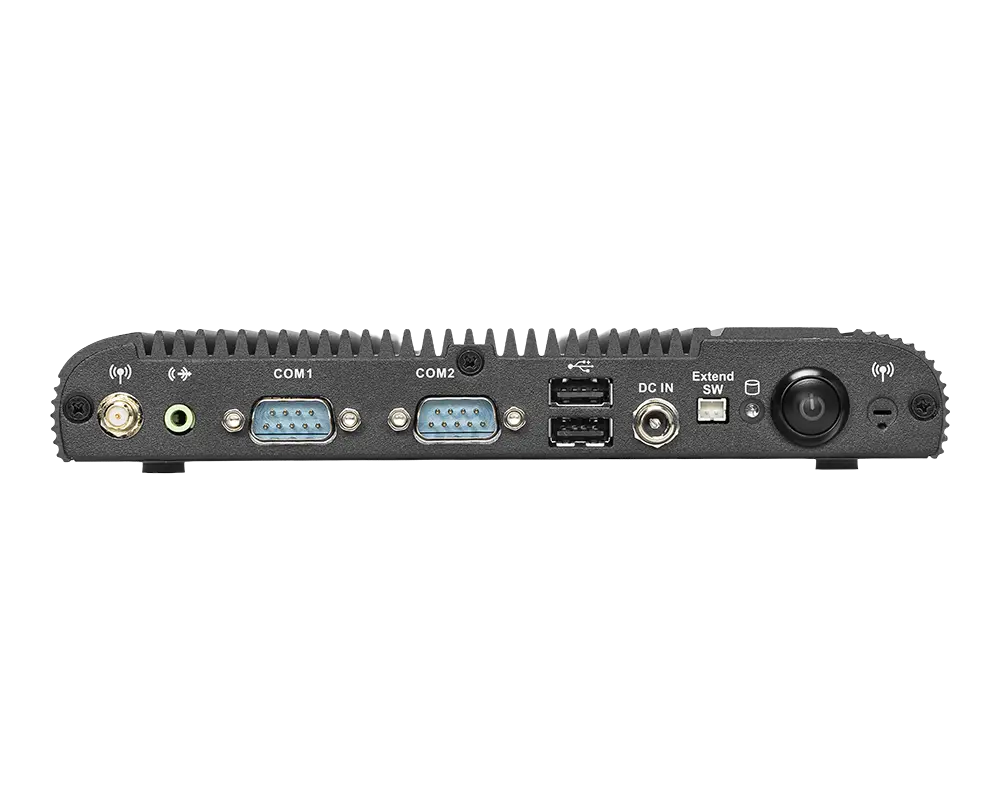

Port selection is extensive for a compact edge platform. The MS-C936 includes four USB 3.2 Gen 2 ports, six USB 2.0 ports, two COM ports supporting RS-232/422/485 communication, audio output, and onboard TPM 2.0 security. MSI also highlights a cableless proprietary board layout designed to simplify maintenance and improve airflow inside the compact chassis.
The chassis carries an IP40 dust-protection rating and supports both wall mounting and VESA installation, aligning with deployment flexibility offered by the ASUS PE1000U. MSI lists compatibility with Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, and Linux deployments on request.
The second product, the MS-CF27, targets industrial gateways, embedded networking, transportation hubs, machine vision, and automation controllers. The 3.5-inch SBC platform supports Intel Alder Lake-N, Amston Lake, and Twin Lake-N processors, giving integrators several low-power CPU options alongside platforms such as the DFI INR556 industrial SBC.
Connectivity is the main focus of the MS-CF27. The board includes four Intel Gigabit Ethernet ports and support for up to six serial COM interfaces, allowing direct communication with industrial equipment, sensors, and automation hardware. MSI also includes support for triple independent displays through HDMI, DisplayPort, and LVDS outputs.
Power flexibility is another important feature for industrial installations. The MS-CF27 supports wide-range 12V to 24V DC input, allowing deployment in transportation, embedded, and industrial environments where stable desktop power delivery is not always available.
The MS-C936 and MS-CF27 focus heavily on industrial connectivity, multi-display support, compact deployment, and long-term reliability for AIoT infrastructure and edge computing environments.
Both products are available immediately through MSI IPC distribution channels. Pricing has not been disclosed publicly and will vary depending on configuration and deployment scale.
Source: IPC MSI
