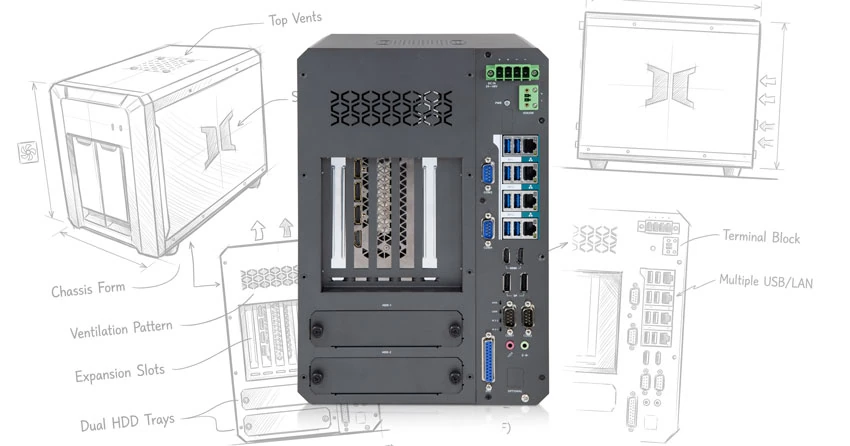

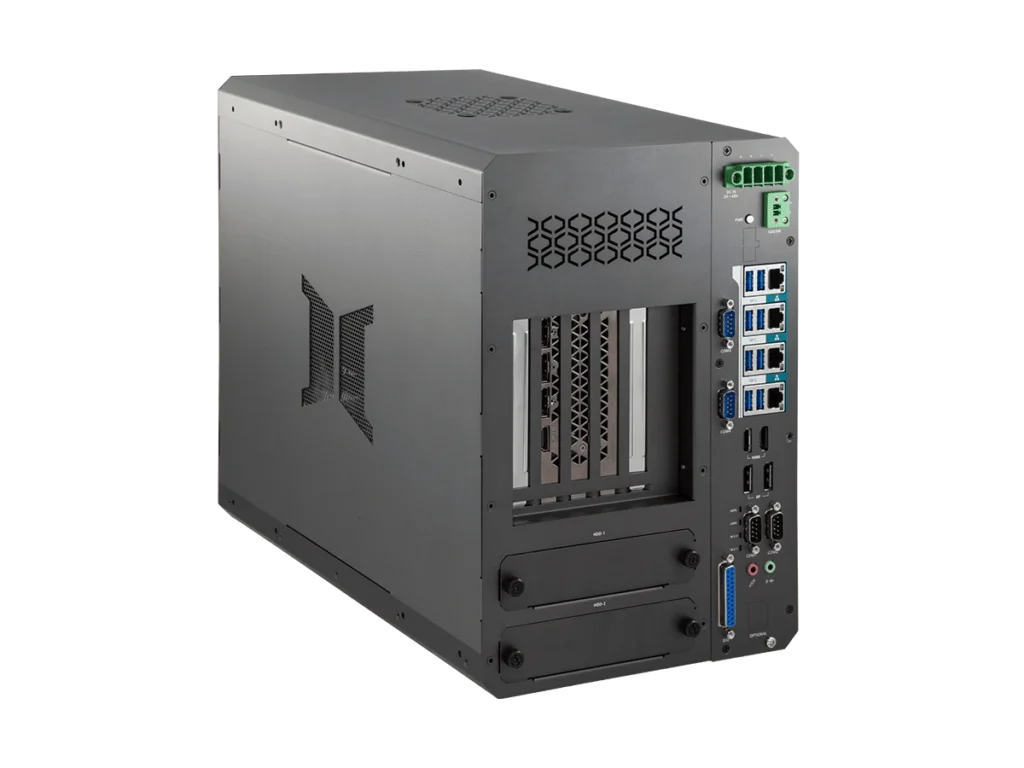

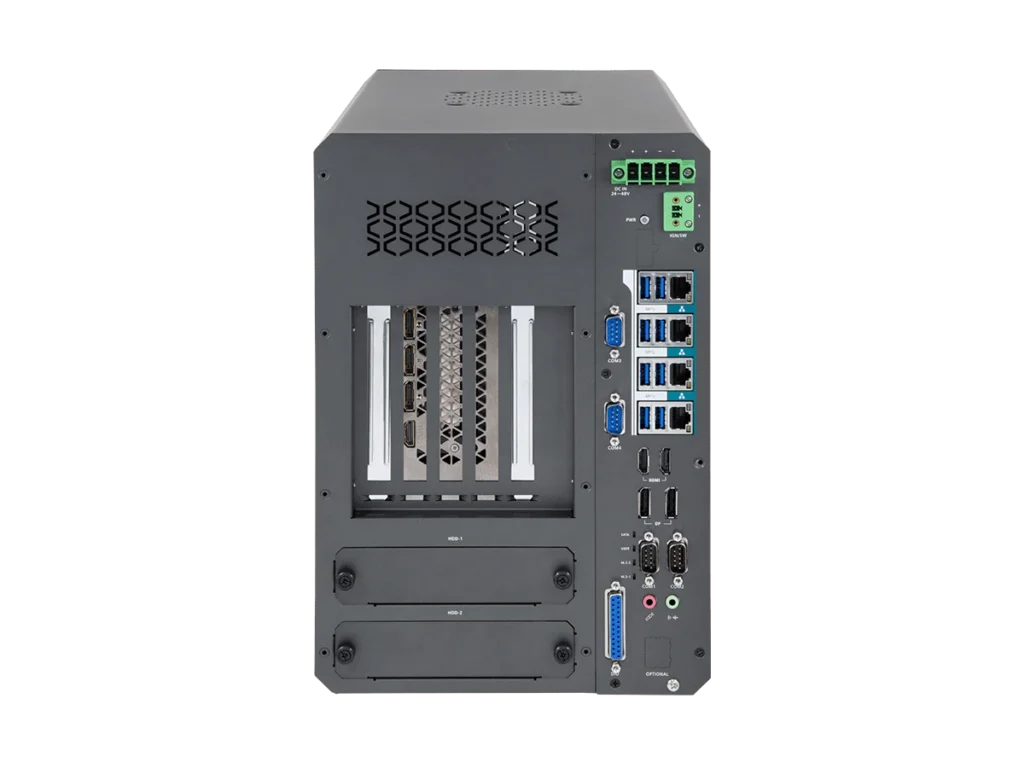

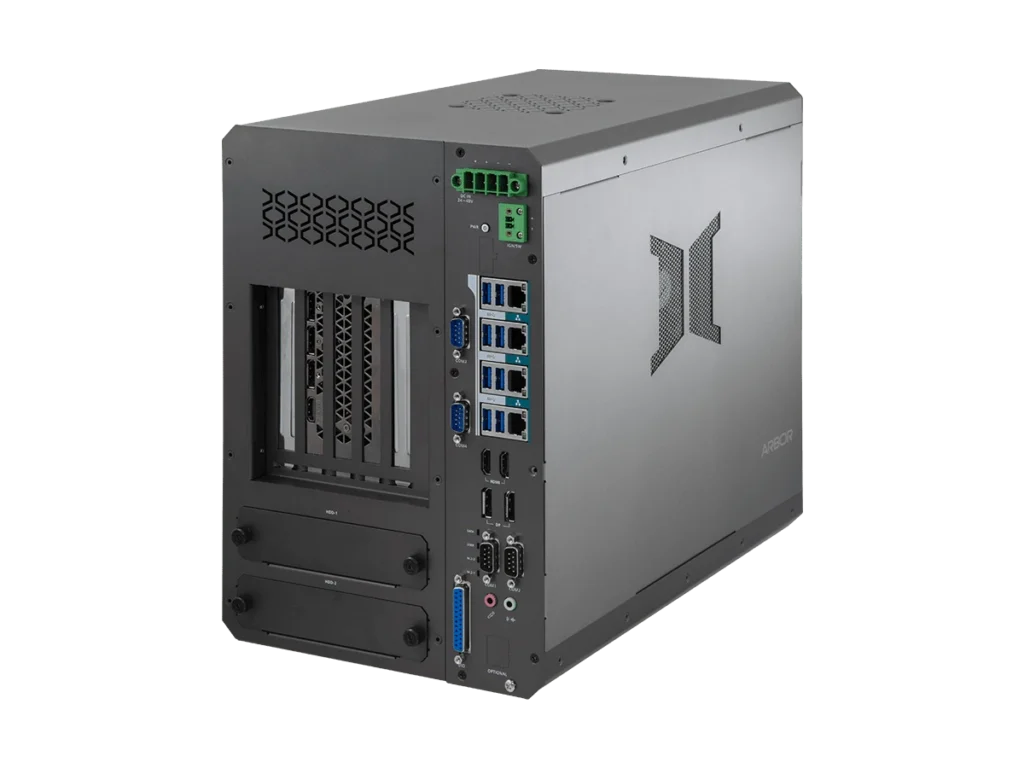

ARBOR’s FPC-9309W-G5 pairs Intel Core Ultra Series 2 desktop processors with NVIDIA RTX 50 Series graphics cards up to the GeForce RTX 5090. It is intended for machine vision, robotics, factory automation, intelligent transportation, and edge AI computing.
The computer accepts Intel Core Ultra Series 2 desktop processors through the LGA1851 socket. Both 35W and 65W processors are available. Compatible CPUs come with Intel’s integrated NPU for AI processing.
NVIDIA RTX 50 Series graphics cards up to the GeForce RTX 5090 are supported. Graphics cards can measure up to 357.6 mm in length. GPU power delivery reaches 600W, while graphics cards with power consumption of up to 575W are supported.
Intel’s W880E chipset gives on the motherboard alongside four DDR5 U-DIMM slots. Memory capacity reaches 192GB with DDR5-5600 modules. Both ECC and non-ECC memory are supported.
Two front-accessible 2.5-inch or 3.5-inch SATA drive bays sit beside two PCIe Gen4 NVMe M.2 slots. RAID 0, RAID 1, and RAID 5 are available.
Networking comes through four Intel i226-LM 2.5GbE Ethernet ports. Display output consists of two HDMI 2.1 ports and two DisplayPort 2.1 connectors. Each display output supports resolutions up to 4K at 60Hz.
Eight USB 3.2 Gen 2 ports deliver transfer speeds of up to 10Gbps. Four serial ports are available, including two RS-232 ports and two configurable RS-232/422/485 ports. A DB25 connector offers eight digital inputs and eight digital outputs for industrial equipment.
The computer carries two PCIe x16 slots and three PCIe x8 slots. Two M.2 B-Key sockets accept 5G, LTE, or storage devices. An M.2 E-Key socket accepts Wi-Fi or Bluetooth modules, while a mini-PCIe slot works with SIM-based communication modules.
Also Read: MSI Unveils AI Jinni Platform Ahead of COMPUTEX 2026
Power comes from a 24V to 48V DC input. Ignition power control is available for vehicle installations. TPM 2.0 and a watchdog timer are built in. The chassis meets MIL-STD-810G standards for vibration and shock resistance. Operating temperatures range from -20°C to 70°C with 35W processors, -20°C to 55°C with 65W processors, and -20°C to 45°C with an RTX 5090 installed.
Claim Your Free Amazon Prime Membership
If you are 18-24, you may qualify for a free 6-month Amazon Prime trial.
Get fast, free delivery, Prime Video, exclusive savings, and more.
Claim 6-Month Free Trial →The chassis measures 220 × 380 × 320 mm and weighs about 7.4 kg. Wall mounting is supported. Operating system compatibility covers Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, and Linux Kernel 6.11. Optional 600W and 1000W DIN rail power adapters are available.
ARBOR has not announced pricing or availability for the FPC-9309W-G5.
Sources: ARBOR & ARBOR (Product Page)
