COMMELL LV-6718 Mini-ITX Mobile Motherboard Comes With Core Ultra 7 366H

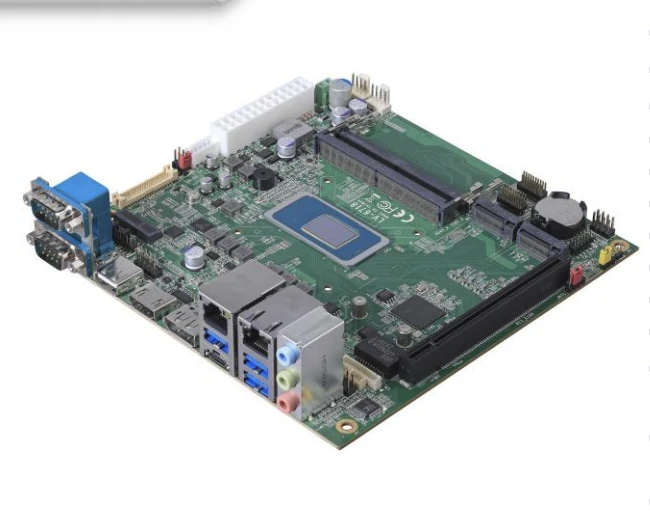

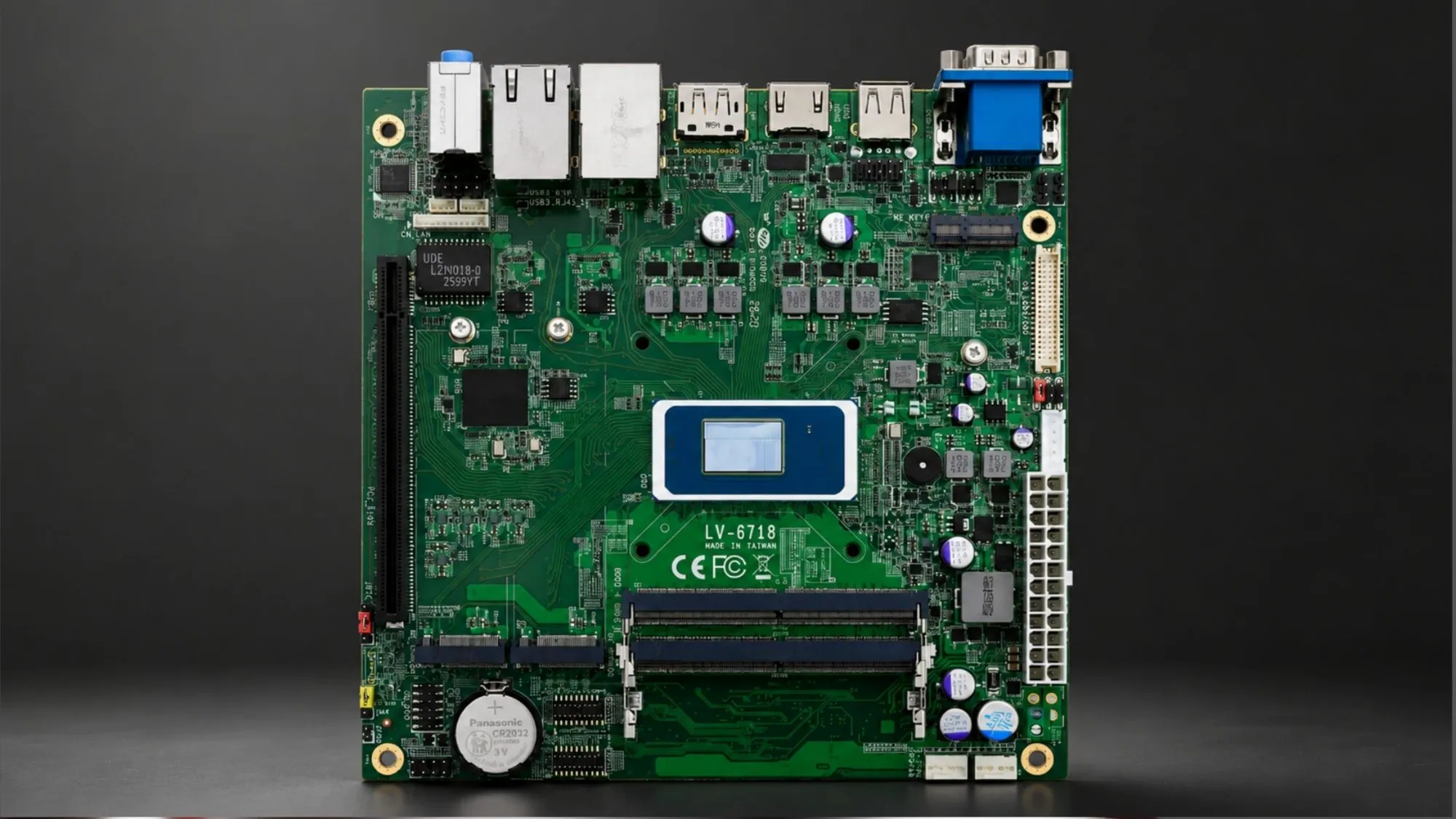

COMMELL has a new Mini-ITX motherboard with Intel’s Core Ultra 7 366H already mounted on the board. The LV-6718 measures 170 × 170 mm and combines Intel’s Panther Lake-H processor with desktop expansion, high-speed storage, and memory support reaching 128GB. It is built for compact PCs where space is limited but expansion still matters.

The integrated Core Ultra 7 366H comes with 16 CPU cores arranged as four Performance cores, eight Efficient cores, and four Low Power Efficient cores. Intel’s integrated graphics and AI Boost NPU are part of the processor, allowing graphics workloads and AI applications to run without adding a separate accelerator for every task.

Memory support reaches 128GB through two DDR5 SO-DIMM slots running at speeds of up to 7200 MT/s. The motherboard relies on notebook-style memory instead of full-size desktop DIMMs, making it possible to keep the Mini-ITX layout while supporting high memory capacity.

Storage is divided across two M.2 2280 slots. One supports PCIe Gen5 x4 SSDs, while the second supports PCIe Gen4 x4 drives. A separate M.2 2230 Key E slot is available for adding a Wi-Fi and Bluetooth module.

A full-length PCIe Gen5 x16 slot runs at x8 bandwidth and supports desktop graphics cards. Builders can install current GPUs without moving to a larger motherboard.

Networking starts with dual Intel 2.5 Gigabit Ethernet ports. COMMELL will offer another version with an Intel 10 Gigabit Ethernet controller for applications that need higher network speeds. Wireless networking is available through the M.2 Key E slot.

The motherboard can drive up to four displays through HDMI, DisplayPort++, USB Type-C with DisplayPort Alt Mode, and LVDS or eDP connections for embedded hardware.

Rear connectivity includes three USB 3.2 Gen2 ports, one USB 2.0 port, dual serial ports supporting RS232, RS422, and RS485, audio jacks, and Ethernet ports. Internal headers provide four additional serial ports, two USB 2.0 ports, GPIO, SMBus, audio, LAN, and LCD inverter support.

Power can come from either a standard 24-pin ATX connector or a 9V to 35V DC input. COMMELL rates the motherboard for operating temperatures between 0°C and 60°C, making it suitable for commercial and industrial deployments.

The Core Ultra 7 366H processor is permanently mounted on the motherboard and cannot be replaced. The board works with COMMELL’s cooling solution and notebook-style SO-DIMM memory instead of standard desktop CPU coolers and DIMM modules.

COMMELL has not announced pricing or a shipping date for the LV-6718.

Source: COMMELL
