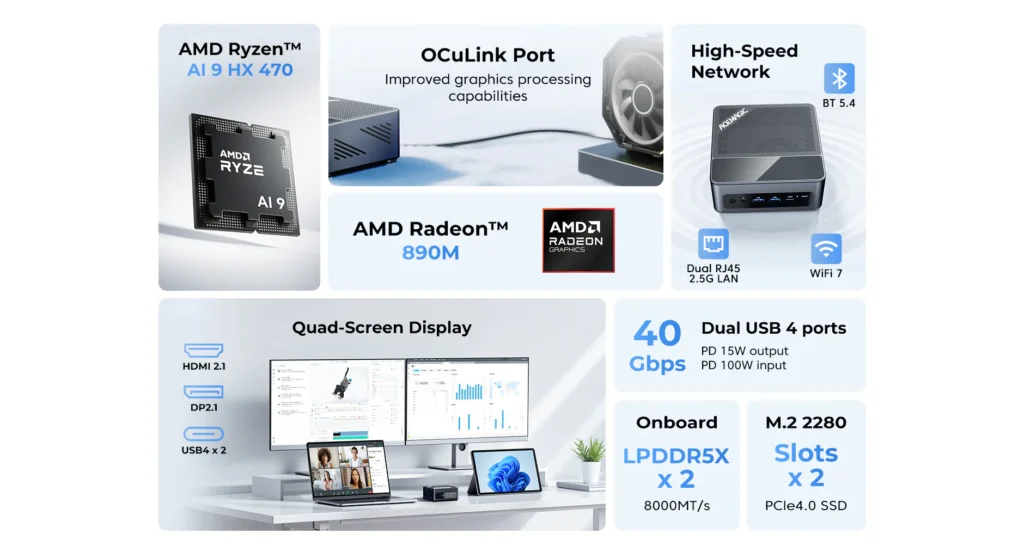

Acemagic has introduced the F5A mini PC, built around AMD’s Ryzen AI 9 HX 470 processor and aimed at users who want strong CPU performance, modern AI capability, and a clear upgrade path for graphics. Despite its compact size, the device combines a high-end chip, fast integrated graphics, and a direct OCuLink port for external GPUs. Pre-orders are open now, with shipping expected to begin on May 30.
At the center is a 12-core, 24-thread processor based on a mix of Zen 5 and Zen 5c cores, with boost speeds reaching up to 5.2GHz, as outlined in AMD Zen 6 Medusa Point updates. Alongside raw CPU power, the chip includes an XDNA2 NPU rated at up to 55 TOPS. When combined with CPU and GPU acceleration, total AI performance reaches up to 86 TOPS. This level of throughput is aimed at local AI tasks such as image generation, background processing, and on-device assistants, where faster response and lower latency matter.
Graphics come from the integrated Radeon 890M based on RDNA 3.5 with 16 compute units, expanding on recent developments covered in AMD Radeon RX 9070 pricing. It is capable of running modern games at moderate settings and supports hardware acceleration for creative workloads. For users who need more graphics power, the OCuLink port changes what a mini PC can do.

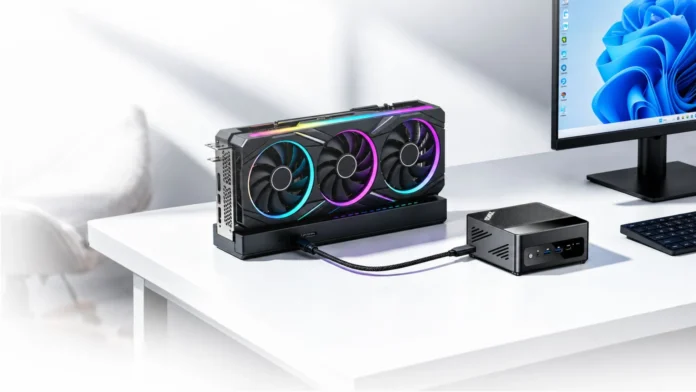

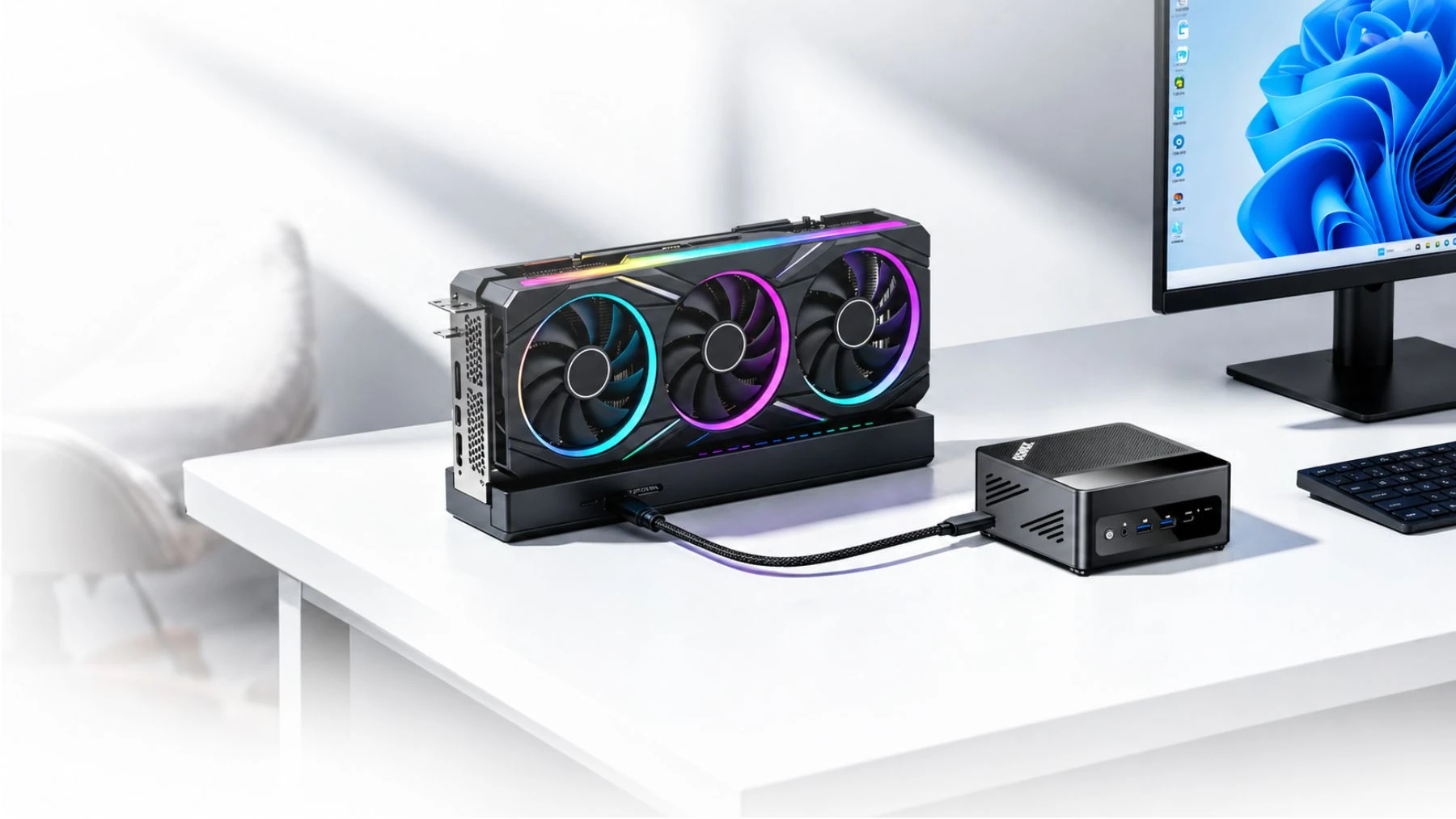

Unlike USB-based external GPU setups, OCuLink connects directly with far higher bandwidth, addressing limits discussed in Gigabyte RTX 5060 Ti AI Box coverage. In real-world use, an external desktop GPU can reach close to its full performance, often around 90 percent depending on the setup. This makes it possible to pair the F5A with a high-end graphics card without the usual bottlenecks seen in compact systems.
Memory is fixed at 32GB of LPDDR5X running at 8000MT/s, which keeps performance consistent but removes upgrade options. Storage is more flexible. The device includes three M.2 2280 slots, allowing up to 12TB of total capacity depending on the drives installed. This makes it suitable not only for daily use but also for larger libraries, project files, or local data storage without relying on external drives.

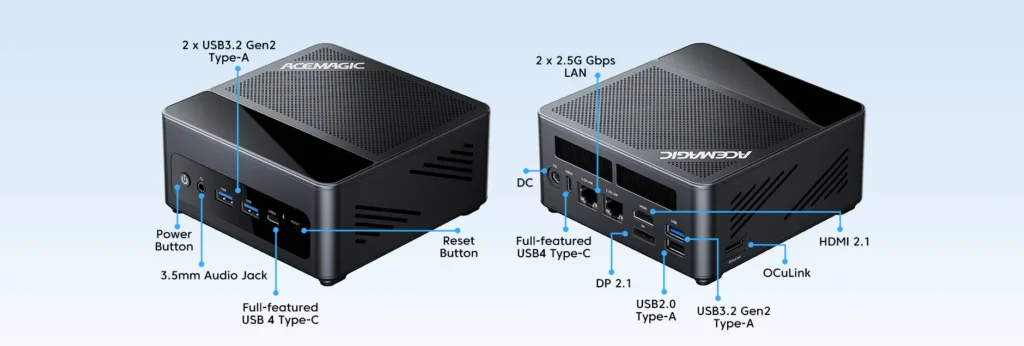

Connectivity is one of the stronger areas for this model, aligning with high-bandwidth standards covered in UGREEN Thunderbolt 5 docking stations. It includes two USB4 ports with 40Gbps bandwidth and DisplayPort output, along with HDMI 2.1 and DisplayPort 2.1. The mini PC can drive up to four 8K displays at once, which is uncommon in this size class and useful for multi-monitor setups across work, editing, or trading environments.
Networking includes Wi-Fi 7, Bluetooth 5.4, and dual 2.5Gb Ethernet ports. This combination supports both high-speed wireless and stable wired connections, fitting well in setups where network performance is important.
The chassis measures 130 × 132 × 62 mm, keeping the footprint small enough for tight desk spaces or compact workstations. Cooling relies on a dual-fan design with a vapor chamber, rated to sustain up to 65W performance. This allows the processor to maintain higher clocks under load compared to many smaller mini PCs that operate at lower power levels.
Compared to other mini PCs in this category, the F5A brings together three key features in one design: OCuLink expansion, triple M.2 storage, and high AI performance. Many competing models rely on USB4 for external GPU connections, which limits bandwidth, while others may offer strong processors but fewer storage options. Here, those limitations are addressed in a single compact unit.
The Acemagic F5A starts at $759 for the barebone version without memory, storage, or operating system. A pre-configured model with 32GB memory and a 1TB SSD is priced at $1,299. Pre-orders are open now, with initial shipments expected at the end of May.
Source: Acemagic (product page)
